Exploring the Cosmos in Your Browser: Behind the Scenes of Retro Solar Explorer

Have you ever wanted to fly through the solar system, orbiting planets and moons, watching orbits unfold in real time, and zooming from the surface of Mars to the far reaches of Neptune—all without leaving your web browser? With Retro Solar Explorer, you can do exactly that.

In this post, we’ll explore what the app can do, how you can interact with it, and peel back the curtain on some of its most interesting technical features: the adaptive Level-of-Detail (LOD) tessellation, the interactive camera system, and how we handle huge astronomical distances with smooth performance.

🚀 What is Retro Solar Explorer?

Retro Solar Explorer is a real-time, interactive simulation of the solar system, built from scratch in modern JavaScript with WebGL2 and Vite. It’s designed to be both beautiful and educational, with a retro-inspired UI and a focus on performance and interactivity.

What Can You Do?

Fly Freely or Orbit Any Body:
Switch between free-flight and orbital camera modes. In free mode, you can move and look anywhere, just like in a 3D game. In orbital mode, pick any planet or moon and smoothly orbit around it—zoom in close or pull back for a full-system view.
Explore Every Major Planet and Moon:
The Sun, all major planets, and their most interesting moons (like Europa, Titan, and our own Moon) are here, each with unique procedural surfaces and coloring.
Control the Flow of Time:
Speed up, slow down, or pause time. Jump to any date from the early 1900s to 2100+ and watch the planets align as they would in real life.
Read Fun Facts and Real Data:
Click any celestial body to see its physical properties, fun facts, and a short, witty description.
Enjoy a Procedural Synth Soundtrack:
Turn on the built-in music generator for an evolving, spacey synth soundtrack—no two sessions sound alike.
Customize Visuals:
Toggle axis/orbit lines, adjust LOD and pixel size, enable/disable the procedural skybox, and more.
Works Everywhere:
The app is fully responsive and touch-friendly, so you can explore the cosmos on desktop or mobile devices.

🛰️ The Magic Behind the Experience

Let’s dive into the technical side and see what makes Retro Solar Explorer tick.

1. Adaptive Level-of-Detail (LOD) Tessellation

Rendering entire planets with realistic detail is a big challenge, especially when you want to zoom from millions of kilometers away down to just above the surface. Drawing millions of triangles at all times would destroy performance—even on a desktop GPU.

Enter screen-space adaptive LOD tessellation:

Dynamic Tessellation:
Each planet or moon is rendered as a dynamically subdivided icosahedron. The mesh is recursively subdivided in real time, but only where the surface appears large enough on screen to merit more detail.
Screen-Space Metric:
Instead of subdividing based on geometric distance alone, we use a screen-space metric: if a patch of the planet is projected to be larger than a certain number of pixels, it’s subdivided further.
Smart Culling:
We use frustum culling (removing geometry outside the view), backface culling (removing patches facing away), and even cache geometry based on camera position and planet rotation.
Geometry Caching:
If the camera hasn’t moved much and the planet hasn’t rotated, we reuse the previous mesh, saving precious CPU and GPU time.
Level-of-Detail Visualization:
For debugging or curiosity, you can toggle LOD coloring to see which parts of the planets are rendered at which detail levels.

Result:
You can zoom from a full solar system view down to the surface of Mars or Europa, and the app smoothly adapts, always rendering just enough detail for a crisp image—never wasting resources.

2. Camera System: Free Flight and Orbital Views

Navigating the solar system should feel intuitive and empowering, whether you’re a space nerd or a casual explorer. Retro Solar Explorer features two main camera modes:

Free-Flight Mode:
- Move with WASD (or touch controls on mobile), rise/fall with Space/C, and look around with the mouse or a finger swipe.
- Roll the camera with Q/E for that true astronaut feel.
- Great for flying between planets or exploring the vastness of space.
Orbital Mode:
- Focus on any planet or moon with a single click or keyboard shortcut.
- Orbit smoothly around the target, zooming in or out with scroll or pinch.
- Camera orientation and up-vector are intelligently aligned to each planet’s axis, so you always get a natural view.
Seamless Switching:
- Switch between modes at any time. Hit “Free Flight” to break orbit and fly off into the void!

Technical Note:
The camera system is designed to work with huge coordinate ranges, using a “camera-relative” rendering system (see below) to keep the math stable even when you’re billions of kilometers from the Sun.

3. Handling Astronomical Distances: Camera-Relative Rendering

Simulating the real solar system means dealing with distances from thousands to billions of kilometers. But computers (and especially graphics cards) don’t like huge numbers—floating-point precision suffers, and you get jittery or broken visuals.

Retro Solar Explorer solves this with:

Camera-Relative Coordinates:
All rendering is done relative to the camera’s current position, so the camera is always at the origin in GPU space.
Logarithmic Depth Buffer:
Instead of a linear depth buffer, we use logarithmic depth calculations in the shaders. This keeps planets, moons, and rings rendering correctly even when they’re millions of units away.
Scale Factors:
For performance and visibility, all distances and radii are scaled (e.g., 10x) to fit comfortably in the WebGL coordinate space, while still preserving relative proportions.
Precision-Preserving Math:
All transformations (orbits, rotations, etc.) are carefully managed to avoid accumulating floating-point errors over time.

Result:
You can zoom from the surface of a moon out to the orbit of Neptune, and everything remains visually stable and precise.

🎮 Controls & UI: What Else Can You Do?

Select Any Body:
Use the sidebar or keyboard shortcuts to focus on any planet, moon, or the Sun.
Custom Time Flow:
Drag the time slider to speed up or slow down time. Pause, reset to today, or jump to any date you like.

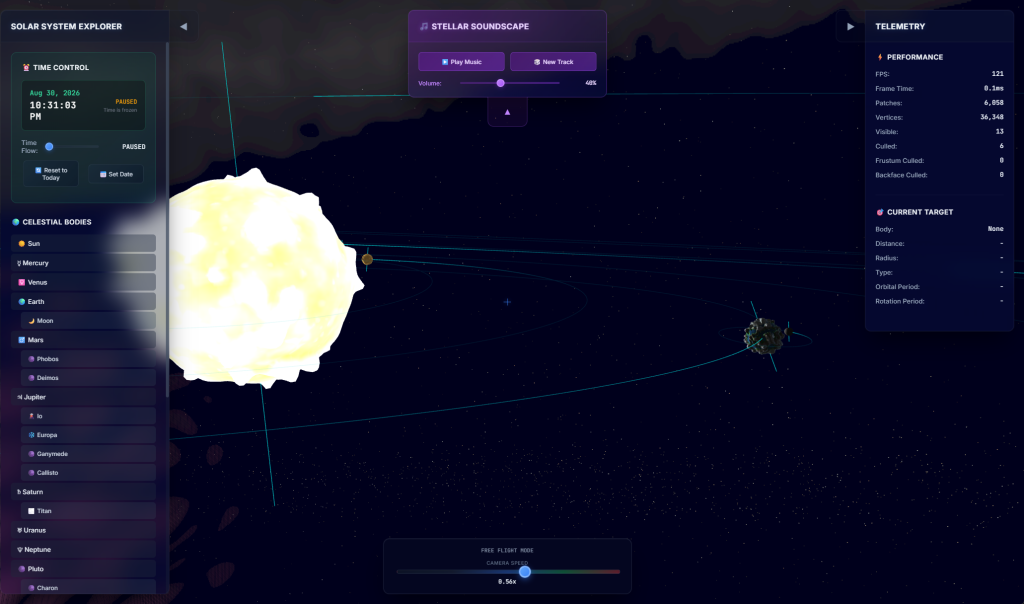

Read Telemetry:
See real-time FPS, patch/vertex counts, culling stats, and more in the info panel.
Learn About the Solar System:
Click any body for a fun, fact-filled description and real data (radius, mass, gravity, atmosphere, etc.).
Customize the Experience:
- Toggle LOD coloring, axis/orbit lines, and the procedural skybox.
- Adjust camera speed and sensitivity.
- Listen to generative synth music, or turn it off if you prefer silence.

🌌 Final Thoughts

Retro Solar Explorer is both a technical showcase and a love letter to space exploration and retro sci-fi interfaces. Whether you’re learning graphics programming, teaching astronomy, or just want to cruise the solar system in style, this app is for you.

Ready to explore? Try the live demo now!

Want to see how it works under the hood? Check out the source code on GitHub!
